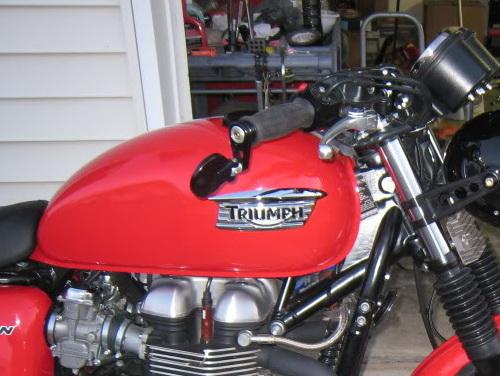

FOR TRIUMPH BONNEVILLE STOCK 1" BARS WITH M5 THREADED LUG INSIDE OF THE BARS:

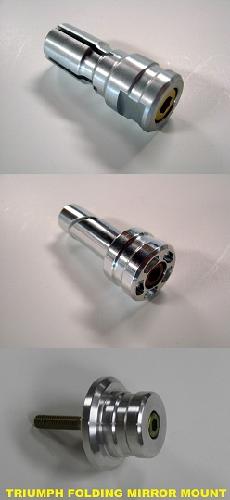

USE THE SPECIAL MOUNT SECTION SHOWN ABOVE JM-09-300-4 THE BONNEVILE MOUNT REPLACES THE SILVER WASHERS ON THE ENDS OF THE STOCK GRIPS. JUST UNSCREW THE PRE- EXISTING UNITS, THEN MOUNT OURS, THEN MOUNT THE MIRROR

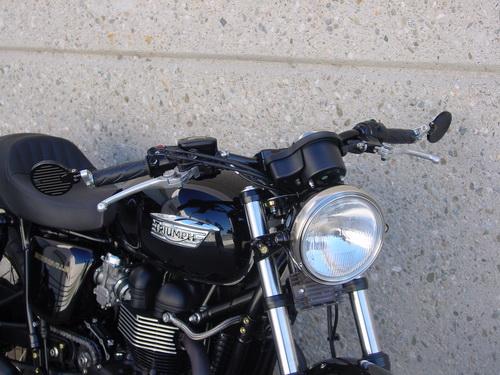

FOR TRIUMPH THRUXTON STOCK 1" CLUBMAN STYLE BARS WITH M6 THREADED LUG INSIDE OF THE BARS:

USE THE SPECIAL MOUNT SECTION SHOWN ABOVE JM-09-300-5 THE THRUXTON MOUNT REPLACES THE STOCK TRIUMPH CAFE' TYPE MIRRORS - JUST UNSCREW THE PRE- EXISTING UNITS, THEN MOUNT OURS, THEN MOUNT THE MIRROR

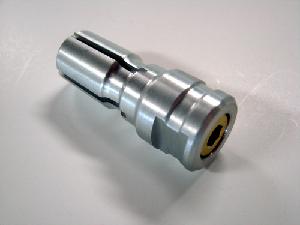

BAR EXPANDER TYPE MOUNT INSIDE DIA. EXPANDING RANGE SPECS:

1" UNIT: .750" TO .850" - (19MM TO 21.6MM)

7/8" UNIT: .650" TO .750" - (16.5MM TO 19MM)

FAT BAR UNIT: .550" TO .650" - (14MM TO 16.5MM)

NOTE: Each assy. IS UNIVERSAL and works on either left or right side of handlebars.
