FAIRINGS

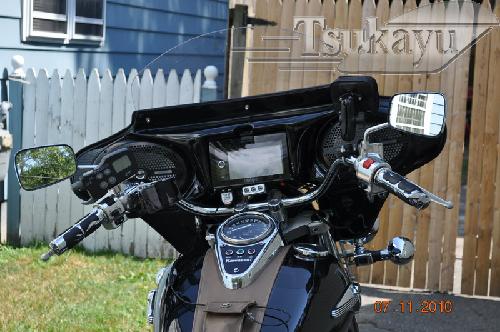

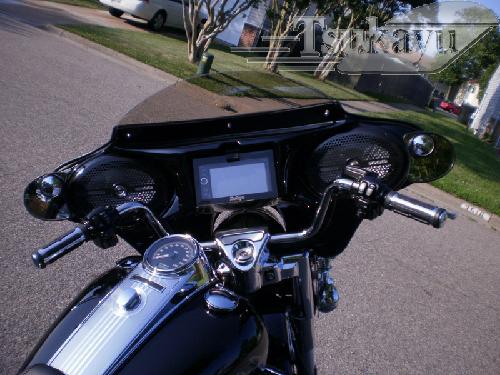

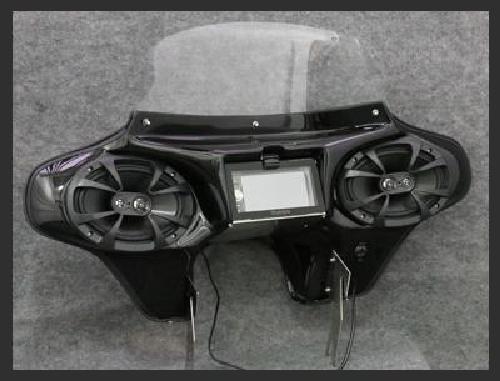

BATWING GPS FAIRING WITH 6x9 MARINE SPEAKERS (PRIME OR BLACK)

TSUKAYU
PART NO: TS-GPS-6X9-PRI
Rate This Product!

$1,899.95

$999.95

Save: $900.00

Color:

FAIRINGS

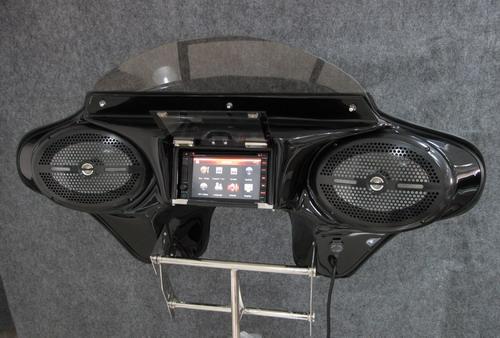

BATWING GPS FAIRING WITH 6x9 MARINE SPEAKERS (PRIME OR BLACK)

Manufacturer: TSUKAYU
PART NO: TS-GPS-6X9-PRI
Rate This Product!

$1,899.95

$999.95

Save: $900.00

Color:

ABOUT THIS ITEM

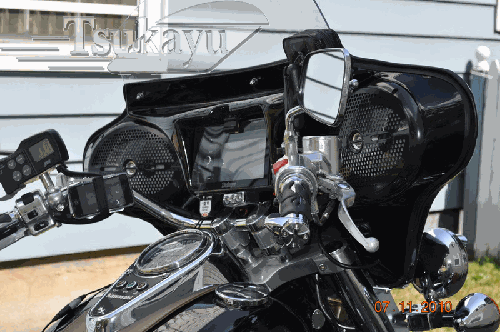

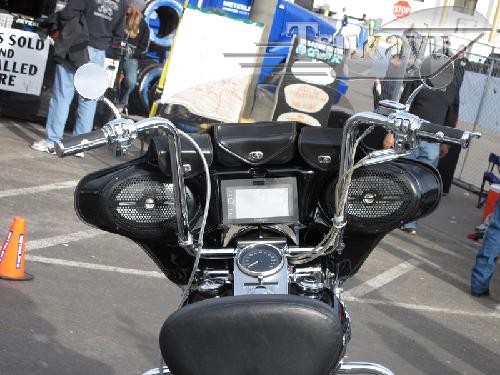

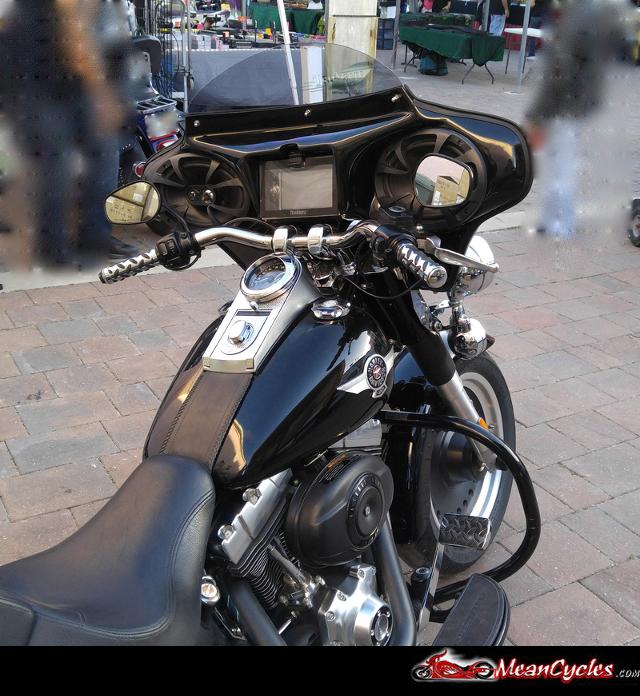

Exclusive and original GPS Fairing which fulfills most of riders needs.

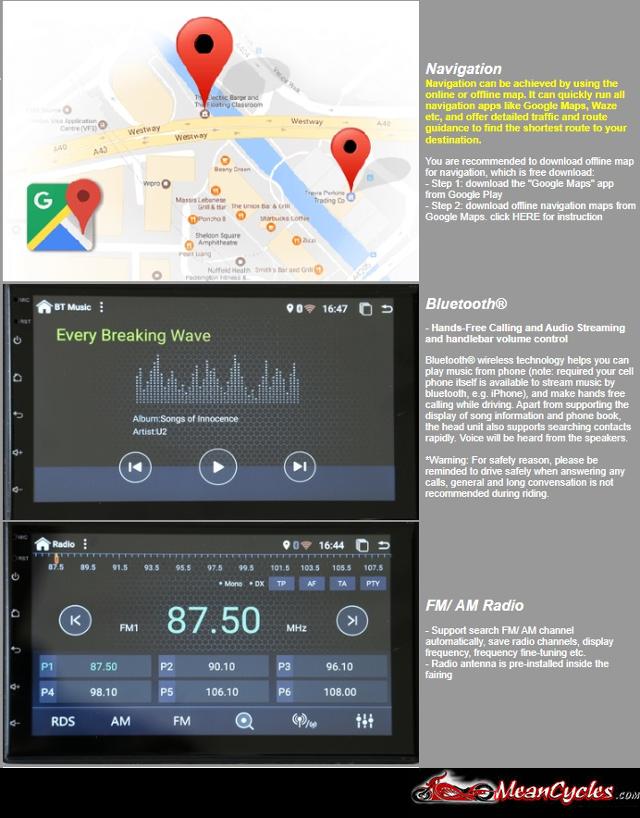

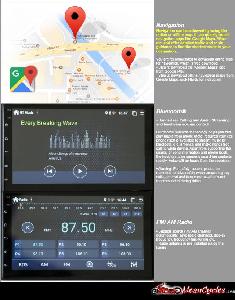

-Combination of GPS navigating and music enjoyment during riding. Eonon GPS stereo (Model GA2165)

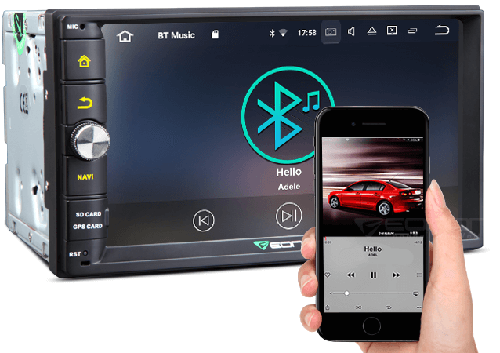

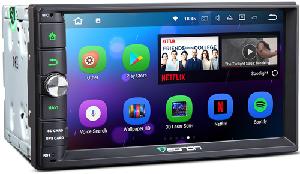

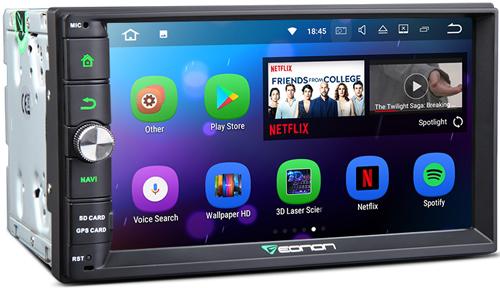

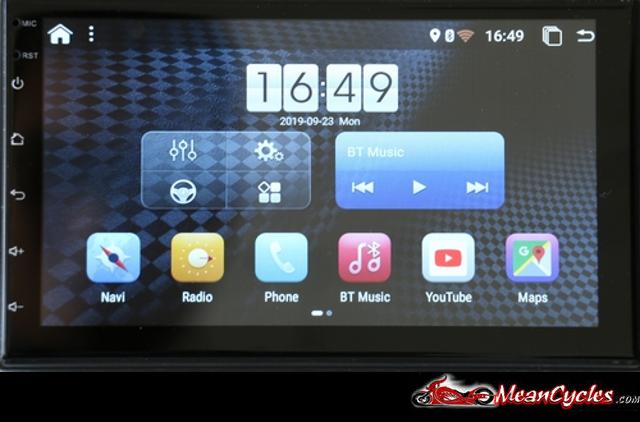

Eonon GPS stereo (Model GA2165)
• Android 7.1 OS, 2GB RAM & strong quad-core processor ensures a high speed of response

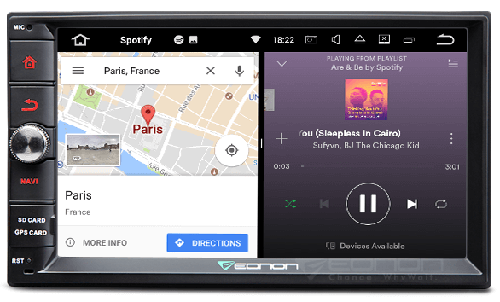

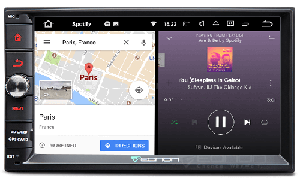

• Split screen mode allows running two apps side by side
• Navigation can be achieved by using the online, offline map or purchasing a map card (GPS Map card is NOT included)

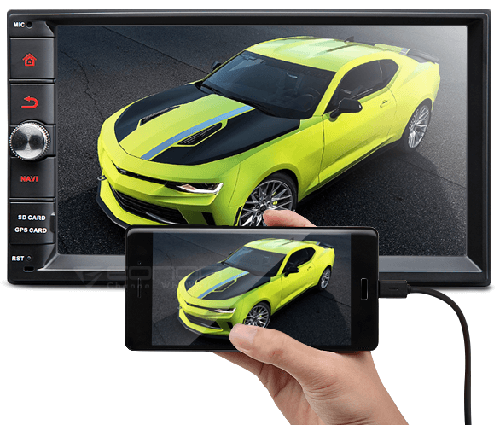

• HDMI output transmits provides you a world-class viewing experience. (Only for headrest or monitor with HDMI input.)
• Support Subwoofer output volume adjustable & Bluetooth Music Info Display
• 1024x600 HD screen delivers more crystal clear picture quality
• Travel easy with navigation system
• Installation size: 182(Width) x 131(Depth) x 104(Height) mm

Specification:
- Operating voltage: DC 12V
- Range of operating: 9V - 16V
- Maximum power current: 10A
- Radio function FM/ AM: Range at 87.5MHz - 108.0MHz, high sensitivity
- Bluetooth: built-in handfree bluetooth which supports call-in display, dial record consul, dial keyboard, phone book
- Built-in Bluetooth and microphone (Extra external mic)

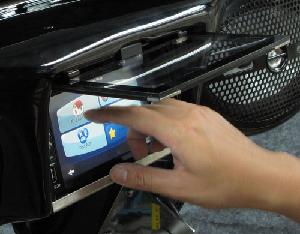

- Touch screen: graphical user interface (GUI), less visible buttons more friendly operation. Allows you to operate the GPS stereo easily and conveniently
- support playing video and music, and browse pics from head unit memory, SD card or USE: compatible with MP3/ MP4/ WMA/ WAV/ AC3/ AVI/ MKV/ WMV/ MPG/ RMVB/ JPEG.
- USB input: Support USB smart phone charge
- Operating temperature: -20°C to 60°C, Humidity: 45% - 80% (relative humidity)
- Storage temperature: -30°C to 70°C, Humidity: 39% - 80% (relative humidity)

GPS stereos uses Wifi or mobile network

Customers use online maps such as google Maps or Waze

1000W TEAC Amplifier - TE-MD4
- Optional, additional $180/ set (Original $225/ set)
Wired Handlebar remote control v3.0 with Bluetooth and iPhone stand
- Optional, additional $150/ set
Model compatibility - Road King Standard / Custom / Police.., Heritage Softail and Fat Boy, all VTX models, Nomad 1600 / Vulcan 1600 Classic, Vulcan 1500 Classic FL,Shadow Aero / Sabre, Valkyrie, V-star, RoadStar, VL1500LC /C90, Volusia 800 / C50, Victory Kingpin, and more etc
2018+ Softail models with original Harley mounts.

INCLUDES CLASSIC 5" or 8" clear or smoke (Please let us know under COMMENTS section).

10" FLAT CLEAR OR SMOKE EXTRA $20.00
5" OR 8" CURVY CLEAR OR SMOKE EXTRA $30.00
10" CURVY CLEAR OR SMOKE EXTRA $40.00

Make and Models

Requirements / mounting systemInner Fairing Compatibility
Harley Davidson

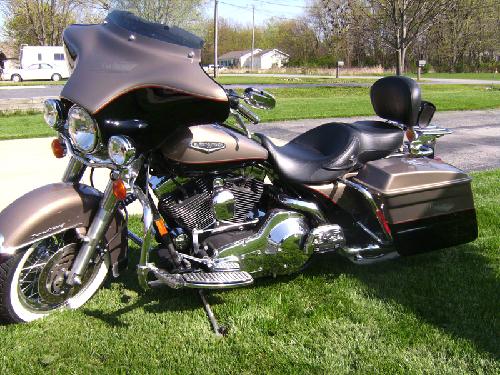

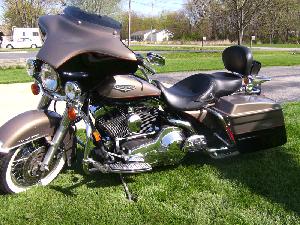

Road King (1994 or up) with factory quick detach windshield mounts, details are as follows

Road King Standard (FLHR) - direct fit with the factory windshield mounts
-ALL hardware included

- GPS fairing


Road King Police (FLHP)- direct fit with the factory windshield mounts
- Speedometer on handlebar should be relocated
-ALL hardware included
- GPS fairing

Road King Classic (FLHRC)- direct fit with the factory windshield mounts
-ALL hardware included

- GPS fairing


Road King Custom (FLHRS)

- direct fit with the factory windshield mounts
-ALL hardware included

- GPS fairing

Screamin' Eagle Road King
(FLHRSE4)
- direct fit with the factory windshield mounts
-ALL hardware included
- GPS fairing

Freewheeler (FLRT)

- direct fit with the factory windshield mounts
-ALL hardware included

- GPS fairing



Softails (2000 or up)
With FL front-end and factory quick detach windshield mounts, details are as follows

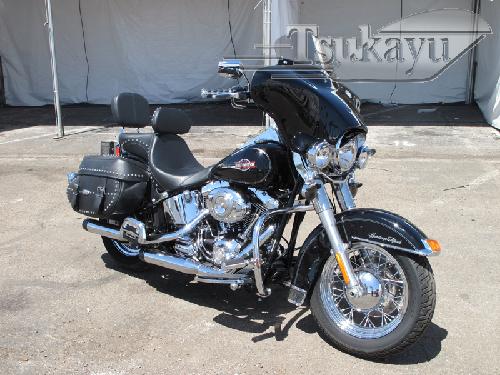

Heritage Softail Classic (FLSTC)- direct fit with the factory windshield mounts
-ALL hardware included
- GPS fairing

2006 Heritage Softail (FLST)- fit with the quick detach windshield mounting kit,
requires relocation of stock turn signals with Auxiliary
Lighting Kit (HD p/n 69287-05) or a Windshield Adaptor
Kit (HD p/n 58270-02) (NOT included)
-ALL other hardware included
- GPS fairing

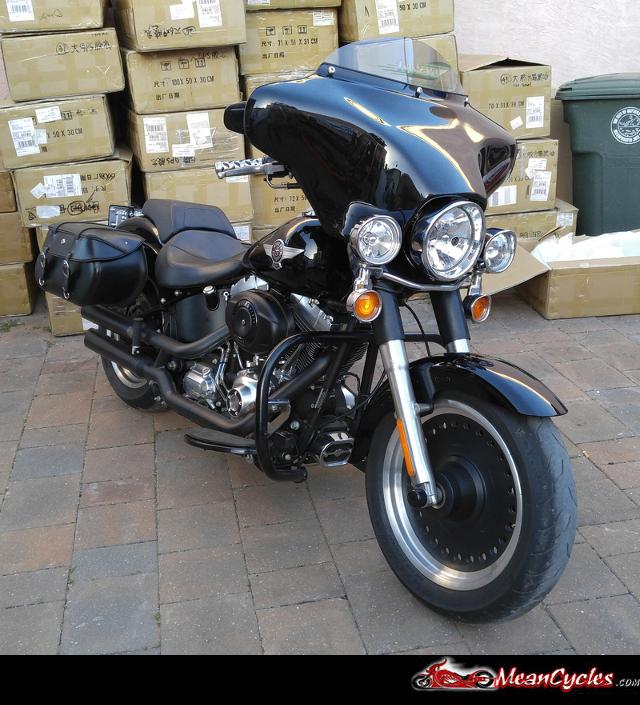

Fat Boy (FLSTF)- fit with the quick detach windshield mounting kit,
requires relocation of stock turn signals with Auxiliary
Lighting Kit (HD p/n 69287-05) or a Windshield Adaptor
Kit (HD p/n 58270-02) (NOT included)
-ALL other hardware included
- GPS fairing

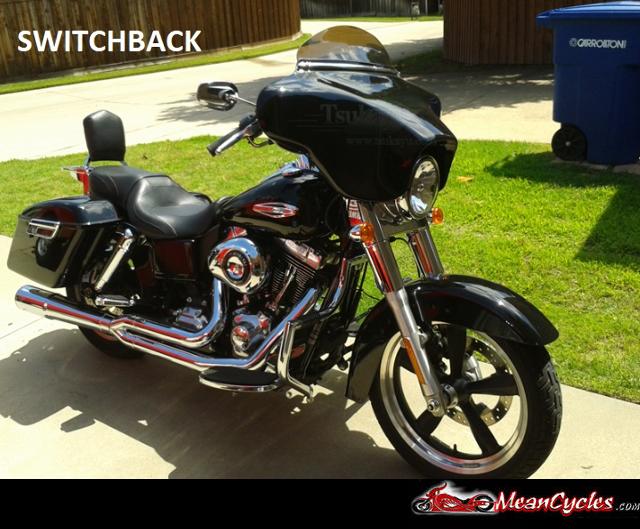

Switchback (2000 or up)- fit with the quick detach windshield mounting kit
-relocation of stock turn signals is recommended
-ALL hardware included
- GPS fairing

Softail Slim (FLS)- fit with the quick detach windshield mounting kit,
requires relocation of stock turn signals with Auxiliary Lighting Kit (HD p/n 69287-05) or a Windshield Adaptor
Kit (HD p/n 58270-02) (NOT included)
-ALL other hardware included
- GPS fairing

HONDA
VTX 1300S/T/Retro (2003-2009) (Covered forks)-ALL Hardware included- GPS fairing

VTX 1300C/F (2001-2009)
(Exposed  forks)
-ALL Hardware included- GPS fairing

VTX 1800R/S/T (2001-2009)
(Covered forks / Exposed Forks)
-ALL Hardware included- GPS fairing

VTX 1800C (2001-2009)
(Covered forks / Exposed Forks)
-ALL Hardware included- GPS fairing

GL1500 Valkyrie (1997-2003)-ALL Hardware included
Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

VT750 Shadow Aero (2004-2014)-ALL Hardware included- GPS fairing

VT1100 Shadow Sabre
(2000-2008)
-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

VT750 Shadow ACE DLX
(1998-2003)
-ALL Hardware included- GPS fairing


YAMAHA
XVS650 V-star Classic / Silverado
(1998-2013)
-ALL Hardware included- GPS fairing

XVS1100 V-Star Classic
(1998-2013)
-ALL Hardware included- GPS fairing

XV1600/1700 Road Star
Road Star Silverado / Silverado S
(1999-2013) (including Midnight)
-ALL Hardware included- GPS fairing

Raider/ Raider S (2006-2015)-ALL Hardware included- GPS fairing


SUZUKI
Boulevard C50 / C50T (2005-2014)-ALL Hardware included- GPS fairing

Boulevard M50 (2005-2009)-ALL Hardware included- GPS fairing

Boulevard C109R / C109RT-ALL Hardware included- GPS fairing

VL800K Intruder Volusia
(2001-2013)
-ALL Hardware included- GPS fairing

VL1500LC Intruder (1998-2004)-ALL Hardware included- GPS fairing

Boulevard C90 / C90T
(2005-2009)
-ALL Hardware included- GPS fairing

Boulevard C90 / C90T / BOSS
(2013-2016)
--ALL Hardware included- GPS fairing

VZ 1600 Marauder-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)


KAWASAKI

Nomad 1500

- Direct Mount to forks
-ALL Hardware included
- require removal of part of factory windshield mount
and lower windshield, fit directly to the stock mounting
holes, bolt-on mounting system, not quick detachable
- GPS fairing

Nomad 1600- Direct Mount to forks
-ALL Hardware included
- require removal of part of factory windshield mount
and lower windshield, fit directly to the stock mounting
holes, bolt-on mounting system, not quick detachable
- GPS fairing

Nomad 1700- Direct Mount to forks
-ALL Hardware included
- require removal of part of factory windshield mount
and lower windshield, fit directly to the stock mounting
holes, bolt-on mounting system, not quick detachable
-ALL Hardware included
- GPS fairing

VN800 Classic With Big Headlight
-ALL Hardware included - GPS fairing

VN900 Vulcan Classic / Classic LT
(2006-2015)
-ALL Hardware included- GPS fairing

VN900 Vulcan Custom
(2006-2015)
-ALL Hardware included- GPS fairing

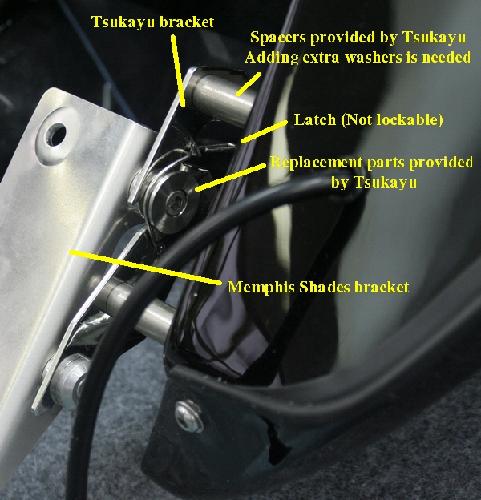

VN1500 Vulcan Classic FI
(2001-2008)
- requires Memphis Shades bracket MEM9926
(NOT included)
- bracket plates that work together with Memphis Shades MEM9926 included
- GPS fairing

VN1500 Vulcan Classic
(1996-2005)
--ALL Hardware included- GPS fairing

Vulcan 1600 Classic
-ALL Hardware included
- GPS fairing

Vulcan 1700 classic LT- Bolt on to Kawasaki factory windshield mount
-ALL Hardware included
- GPS fairing

Vulcan 1700 classic

-ALL Hardware included- GPS fairing

Vulcan 2000 classic /
Vulcan 2000 classic LT

(Do not fit Vulcan 2000
/ Vulcan 2000 Limited)

- Bolt on to Kawasaki factory windshield mount of
99994-0047 (NOT included), not quick detachable
-ALL other Hardware included
- GPS fairing

VN1500 Mean Streak (2002-2003)
VN1600 Mean Streak (2004-2008)
-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)


VICTORY
Victory Boardwalk (2013-2014)-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Cross Roads-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Kingpin (2004 or up)-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Hammer (2005 or up)-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Vegas (All Vegas models)
(2004 or up)
-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Hardball-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Highball (2011-2012)-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Highball (2014-2016)-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Judge (2013-2016)-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

Victory Gunner (2014-2016)-ALL Hardware included
- Speedometer on handlebar should be removed
- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)


TRIUMPH
Rocket III Touring

- Direct Mount to forks
- bolt-on mounting system, not quick detachable
- Relocation of the passing lamp is necessary and relocation kit is NOT provided
-ALL other Hardware included



- GPS fairing


CUSTOMER REVIEWS

There are no community comments or ratings

Review This Item

PART APPLICATION

This item may be used with the following bikes:

  • HARLEY:
    • » DYNA
    • » SOFTAIL
    • » SOFTAIL 2018+
    • » TOURING/DRESSER
  • HONDA:
    • » SABRE 1100
    • » SHADOW ACE 1100
    • » SHADOW ACE 750
    • » SHADOW AERO 1100
    • » SHADOW AERO 750 C4
    • » SPIRIT 750 01-UP DC
    • » SPIRIT 750 07-UP C2
    • » VTX 1300 RETRO / S
    • » VTX 1300C
    • » VTX 1800 RETRO / S
    • » VTX 1800N
  • KAWASAKI:
    • » NOMAD 1700
    • » VN 900
    • » VN1600 CLASSIC
    • » VN1600 NOMAD
    • » VN2000
  • SUZUKI:
    • » C109R Boulevard
    • » C50-VOLUSIA 800
    • » C90-INTR 1500
  • VICTORY:
    • » BOARDWALK
    • » CROSS ROADS
    • » GUNNER
    • » HAMMER
    • » HAMMER 8BALL
    • » HARDBALL
    • » HIGH-BALL
    • » JACKPOT
    • » KINGPIN
    • » MAGNUM
    • » V92C
    • » V92TC
    • » VEGAS
    • » VEGAS 8BALL
  • YAMAHA:
    • » RAIDER
    • » ROADSTAR 1600/1700
    • » V STAR 1100 CLASSIC
    • » V STAR 650 CLASSIC

CUSTOMER REVIEWS

On July 7, 2016 Larryb12 wrote:

Arrived sooner than advertised, and was in perfect condition. Following the provided instructions made mounting and wiring easy. I would recommend this to anyone looking for an aftermarket fairing.

PART APPLICATION

This item may be used with the following bikes:

  • HARLEY:
    • » DYNA
    • » SOFTAIL
    • » SOFTAIL 2018+
    • » TOURING/DRESSER
  • HONDA:
    • » SABRE 1100
    • » SHADOW ACE 1100
    • » SHADOW ACE 750
    • » SHADOW AERO 1100
    • » SHADOW AERO 750 C4
    • » SPIRIT 750 01-UP DC
    • » SPIRIT 750 07-UP C2
    • » VTX 1300 RETRO / S
    • » VTX 1300C
    • » VTX 1800 RETRO / S
    • » VTX 1800N
  • KAWASAKI:
    • » NOMAD 1700
    • » VN 900
    • » VN1600 CLASSIC
    • » VN1600 NOMAD
    • » VN2000
  • SUZUKI:
    • » C109R Boulevard
    • » C50-VOLUSIA 800
    • » C90-INTR 1500
  • VICTORY:
    • » BOARDWALK
    • » CROSS ROADS
    • » GUNNER
    • » HAMMER
    • » HAMMER 8BALL
    • » HARDBALL
    • » HIGH-BALL
    • » JACKPOT
    • » KINGPIN
    • » MAGNUM
    • » V92C
    • » V92TC
    • » VEGAS
    • » VEGAS 8BALL
  • YAMAHA:
    • » RAIDER
    • » ROADSTAR 1600/1700
    • » V STAR 1100 CLASSIC
    • » V STAR 650 CLASSIC

RELATED

RECENTLY VIEWED

No recently viewed items.
